Stand INOVA for an interactive display

Universal aluminum lifting system with a mounting structure for an interactive panel, featuring a counterweight and corrosion resistance. Smooth, maintenance-free operation ensured by ball-bearing wheels and pulleys. Minimum vertical travel range is 530 mm. Maximum stand dimensions (HxWxD) 1615x980x276 mm. Finish: natural anodized, white cover. Compatible with:

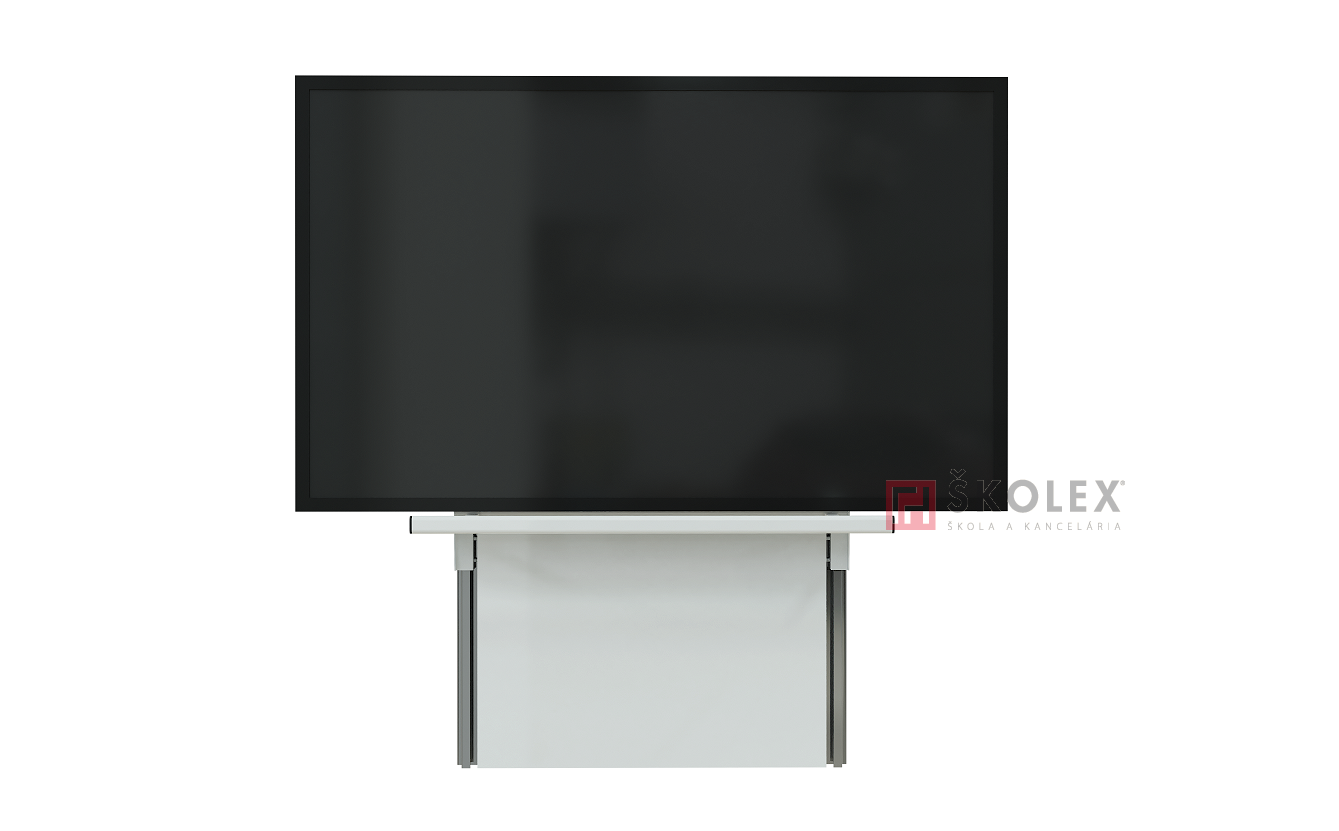

• 55", 65", 75", and 86" interactive panels weighing up to 90 kg (without wings) and a handrail (for interactive panels weighing more than 68 kg, the D70/80 additional weight must be ordered);

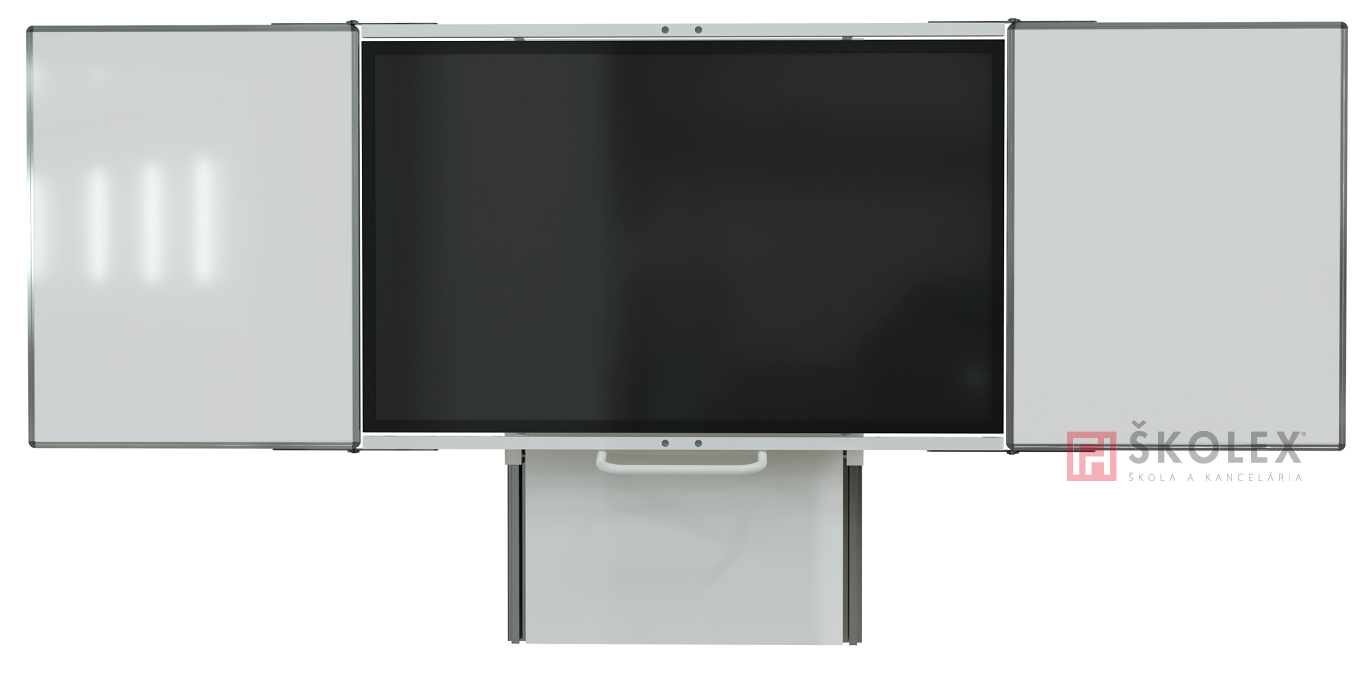

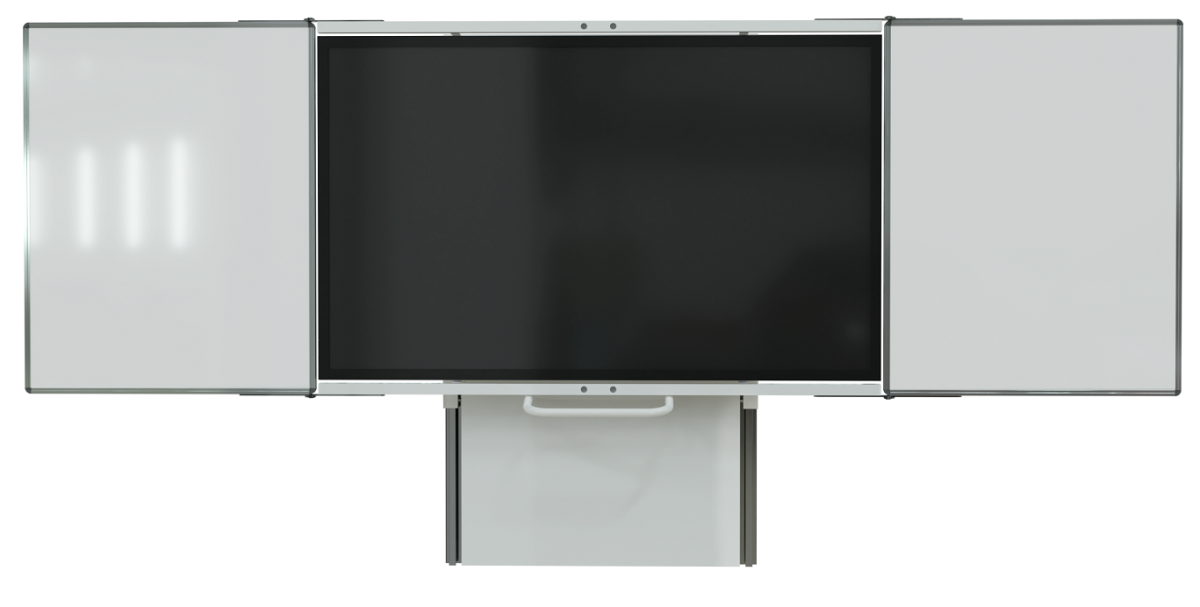

• Combinations of interactive panels (up to 70 kg) with ceramic wings (requires ordering an additional structure with hinges and the D70/80 counterweight).

Safety features - the stand is equipped with a safety lock to prevent it from being pulled out of the wall; the sliding mechanism ensuring vertical movement is enclosed, out of reach of students and teachers.

Modular system – the option to add ceramic panels to an already installed stand with an interactive panel (requires separate delivery). The Inova aluminum stand is also suitable for mounting:

• an interactive whiteboard (up to 90 kg)
• an interactive whiteboard (up to 70 kg) + addition of whiteboard wings
• boards with or without wings and a projection system.

The sandwich-type ceramic board wings feature a naturally anodized aluminum frame with rounded plastic corners. The highest-quality e3 ceramic surface is designed for schools and educational facilities with the heaviest usage, offering excellent erasability. Available surface color combinations:

1. KERAMIC white (B/B) – ceramic, magnetic surface for writing with markers, dry-erase (glossy white);
2. KERAMIC green (G/G) – ceramic, magnetic surface for writing with chalk
3. Combination of the above surfaces (W/G, G/W)

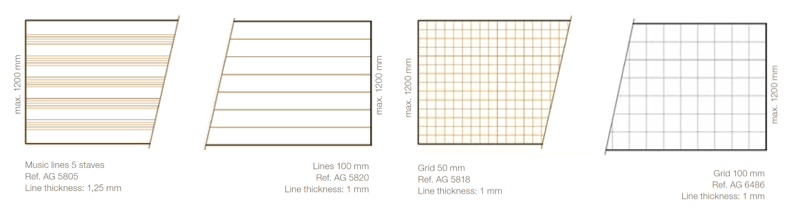

4. For an additional charge, you can order grid patterns: 10 cm lines, 10 cm squares, 5 cm squares, or a musical staff.
